140lm/w Lamp Luminous Efficiency 120v LED Linear Strip Light for Indoor Illumination

Name: 140lmw Lamp Luminous Efficiency 120v LED Linear Strip Light for Indoor Illumination
Brand: Runlux
Price: 24.00 USD

Wholesale 140lm/w Lamp Luminous Efficiency 120v LED Linear Strip Light for Indoor Illumination from china suppliers

Place of Origin : Shanghai, China

Brand Name : Runlux

Model Number : RG-2LS20WD3CCT

Application : Industrial Areas

Item Type : Light Strings

Color Temperature(CCT) : 3500K (Warm White)

IP Rating : IP66

Lamp Body Material : Iron

CRI (Ra>) : 80

Input Voltage(V) : 120-277V standard (120-347V for option)

Lamp Luminous Efficiency(lm/w) : 140

Lamp Luminous Flux(lm) : 2600

Warranty(Year) : 5-Year

Working Lifetime(Hour) : 50000

Working Temperature(℃) : -30 - 45

Certification : ETL

Light Source : LED

Support Dimmer : Yes

Lighting solutions service : Lighting and circuitry design, Onsite metering, DIALux evo layout, LitePro DLX layout, auto CAD layout, Agi32 layout, Project Installation

Lifespan (hours) : 50000

Working Time (hours) : 50000

Product Weight（kg） : 3

Control Mode : Remote Control, Sensor control

Product Name : Indoor linear led decoration strip light 120v led linear strip light

CRI : 80

Color Temp. : 3500K/ 4000K /5000K

Lifetime(H) : 50,000

Color Consistency : Proprietary binning for uniform color

Power Factor : 0.99

Input voltage : 120-277V standard (120-347V for option)

Housing : Plastic

Mounting : Ceiling Mount or Cable Mount

Humidity : 20%-85% , non-condensing

MOQ : 2 pieces

Price : $24.00/pieces 2-49 pieces

Contact Now

Product Description

140lm/w Lamp Luminous Efficiency 120v LED Linear Strip Light for Indoor Illumination

LED Linear Strip Fixture

Overview
ILEDING’s Linear Strips Light Ideal choice for residential, commercial and industrial lighting. Steady performance and long lifetime
Features
•Voltage:120-277V/60Hz, 120-347V/60Hz as optional;
•High Lumen Efficiency:Lumen output more than 130 lm/w, reduces energy consumption up to 80% compared to a fluorescent fixture.
•CCT: 3500, 4000 and 5000K
3CCT: One fixture 3 color temp(3500K,4000K,5000K)
•Mounting method:Ceiling Mount or Cable Mount.
•Linkable (4FT to 8FT):need extra spare parts;
•Certified by DLC premium& ETL(cETL)
•Guarantee: 5 year warranty

Model Selection(Remark: Single Color(3500K/4000K/5000K is optional)

Model No.	Product Size	Rated Power	Lumen	CCT	Effici ency	Dimming
Model No.	Product Size	Rated Power	Lumen	CCT	Effici ency	Dimming
RG-2LS20WD3CCT	23.54”2.62”2.7”	20W	3250	3500K	130	0-10V Dimmable
RG-4LS25WD3CCT	47.24”2.62”2.7”	25W	3250	4000K
RG-4LS32WD3CCT	47.24”2.62”2.7”	32W	4160	5000K
RG-4LS35WD3CCT	47.24”2.62”2.7”	35W	4550	in one fixture
RG-4LS40WD3CCT	47.24”2.62”2.7”	40W	5200
RG-4LS46WD3CCT	47.24”2.62”2.7”	46W	5980

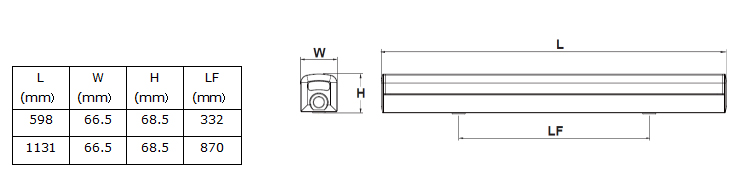

Drawing

140lm/w Lamp Luminous Efficiency 120v LED Linear Strip Light for Indoor Illumination

Specifications

Item	specification	Model
		RG-2LS20WD3CCT	RG-4LS25WD3CCT	RG-4LS32WD3CCT	RG-4LS46WD3CCT
General Performance	Power Consumption	20W	25W	32W	46W
	Lumens Delivered	2600lm	3250lm	4160lm	5980lm
	Efficacy(lm/w)	130
	CRI	80
	Color Temperature	3500K/ 4000K /5000K
	Lifetime(hours)	50000
	Color Consistency	Proprietary binning for uniform color
	Power Factor	0.99
	Input voltage	120-277V standard (120-347V for option)
Physical	Housing	Plastic
	Mounting	Ceiling Mount or Cable Mount
	Humidity	20%-85% RH, non-condensing
Certification	Certification	ETL, cETL, DLC premium, LM-79, LM-80(LED),
	Material usage	RoHS compliant; no mercury
	Work Temperature	-4°F to 122°F (-20°C to +50°C) operating temperature
	Environment	Damp-listed
	Warranty	5 years limited

Motion Sensor

Built-in motion sensor

120-277V Only, 5m Height Max

Built-in motion sensor

Suit for 120-347V, 4m Height Max

Shipping information

Type	Pc/inner	Pcs/Carton	Carton Dimension (mm)	20GP	40GP	40HQ

2FT/20W	1pc	6pcs	635255185	5800pcs	11500pcs	14000pcs
4FT/25W,32W,35W,40W,46W	1pc	6pcs	1170255185	3150pcs	6200pcs	7200pcs
