North America Industrial and Office LED Wraparound Light Fixture with 2ft 4ft 8ft ETL DLC

Place of Origin : Shanghai, China

Brand Name : Runlux

Model Number : RG-2WR23WD3CCT

MOQ : 2 pieces

Price : $24.00/pieces 2-49 pieces

Color Temperature(CCT) : 5000K (Daylight)

IP Rating : IP65

Input Voltage(V) : 120-277V standard (120-347V for option)

Lamp Luminous Efficiency(lm/w) : 125

Lamp Luminous Flux(lm) : 2290

Warranty(Year) : 5-Year

Working Temperature(℃) : -4 - 122

Color Rendering Index(Ra) : 80

Cover Material : Plastic

Install Style : Surface Mounted

Base Material : -

Light Source : LED

Control Mode : Remote Control

DIY : No

Lighting solutions service : Lighting and circuitry design, Project Installation, Light drawing and design, auto CAD layout, Project group sales, Onsite metering, Agi32 layout, Project lighting design, LitePro DLX layout, DIALux evo layout

Application : Workshop

Design Style : Industrial

Lifespan (hours) : 50000

Working Time (hours) : 50000

PCs/ Ctn : 6pcs/ctn

Packing Dimension : 117*25.5*18.5

Product Dimension : 44.44*5.34*1.95

Product Weight（kg） : 1

Power brand : Others

Free sample : NO

Lamp Sizes : Middle

Product Name : 2ft 4ft 8ft ETL Industrial Indoor Office led wrap linear light fixture

CRI : 80

Color Temp. : 3500K/ 4000K /5000K

Lifetime(H) : 50,000

Color Consistency : Proprietary binning for uniform color

Power Factor : 0.99

Input voltage : 120-277V standard (120-347V for option)

Housing : Plastic

Mounting : Ceiling Mount or Cable Mount

Humidity : 20%-85% , non-condensing

Contact Now

Product Description

North America Industrial and Office LED Wraparound Light Fixture with 2ft 4ft 8ft ETL DLC

North America Industrial and Office LED Wraparound Light Fixture with 2ft 4ft 8ft ETL DLC

North America Industrial and Office LED Wraparound Light Fixture with 2ft 4ft 8ft ETL DLC

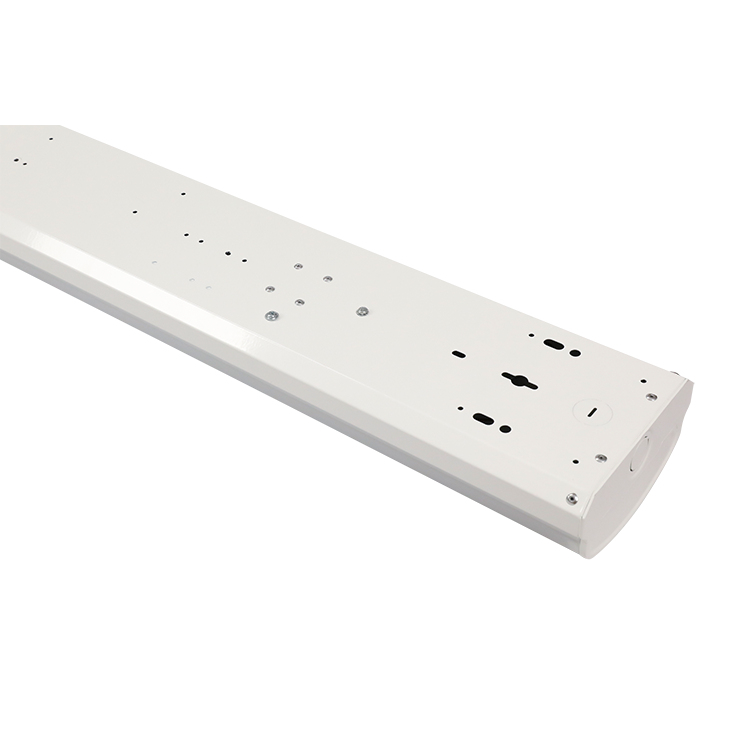

LED Linear Strip Fixture

Overview
Runlux’s Wraparound Light Ideal choice for residential, commercial and industrial lighting. Steady performance and long lifetime
Features
•Voltage:120-277V/60Hz, 120-347V/60Hz as optional;
•High Lumen Efficiency:Lumen output more than 130 lm/w, reduces energy consumption up to 80% compared to a fluorescent fixture.
•CCT: 3500, 4000 and 5000K
3CCT: One fixture 3 color temp(3500K,4000K,5000K)
•4 wattage selectable in wrap light
•Ambient Temperature:-25℃~45℃
•Certified by DLC premium& ETL(cETL)
•Guarantee: 5 year warranty

Model Selection(Remark: Single Color(3500K/4000K/5000K is optional)

Model No. Product Size Rated Power Lumen CCT Effici ency Dimming Cert
RG-2WR23WD3CCT 24”*5.2”*2.83” 23W 2290 3500K 4000K 5000K in one fixture 130 0-10V Dimmable

ETL+DLC Premium
RG-4WR26WD3CCT 48”*5.2”*2.83” 26W 3380
RG-4WR35WD3CCT 48”*5.2”*2.83”” 35W 4550
RG-4WR39WD3CCT 48”*5.2”*2.83”” 39W 5070
RG-4WR46W4P3C(46W/39W/35W/30W) 48”*5.2”*2.83”

46W/39W/

35W/30W

5980/5070/

4550/3900

 3CCT, 4Watt in one fixture

Drawing

North America Industrial and Office LED Wraparound Light Fixture with 2ft 4ft 8ft ETL DLC

Specifications

Item specification Model
RG-2WR23WD3CCT RG-4WR26WD3CCT RG-4WR39WD3CCT RG-4WR46W4P3C
General Performance Power Consumption 23W 26W 39W 46W/39W/35W/30W
Lumens Delivered 2290lm 3380lm 4550lm 5980/5070/4550/3900
Efficacy(lm/w) 130
CRI 80
Color Temperature 3500K/ 4000K /5000K
Lifetime(hours) 50000
Color Consistency Proprietary binning for uniform color
Power Factor 0.99
Input voltage 120-277V standard (120-347V for option)
Physical Housing Plastic
Mounting Ceiling Mount or Cable Mount
Humidity 20%-85% RH, non-condensing
Certification Certification ETL, cETL, DLC premium, LM-79, LM-80(LED)
Material usage RoHS compliant; no mercury
Work Temperature -4°F to 122°F (-20°C to +50°C) operating temperature
Environment Damp-listed
Warranty 5 years limited

Motion Sensor

North America Industrial and Office LED Wraparound Light Fixture with 2ft 4ft 8ft ETL DLC North America Industrial and Office LED Wraparound Light Fixture with 2ft 4ft 8ft ETL DLC North America Industrial and Office LED Wraparound Light Fixture with 2ft 4ft 8ft ETL DLC

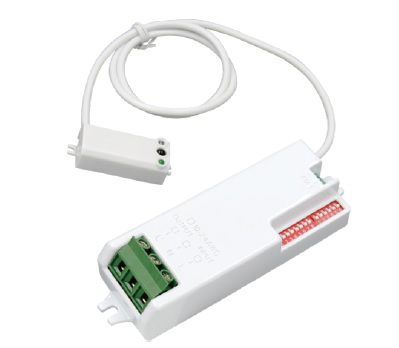

Built-in motion sensor

120-277V Only,

5m Height Max

External motion sensor

120-347V Only,

5m Height Max

Built-in motion sensor

12V Only (suit for 120-347V driver)

4m Height Max

North America Industrial and Office LED Wraparound Light Fixture with 2ft 4ft 8ft ETL DLC

North America Industrial and Office LED Wraparound Light Fixture with 2ft 4ft 8ft ETL DLC

North America Industrial and Office LED Wraparound Light Fixture with 2ft 4ft 8ft ETL DLC

North America Industrial and Office LED Wraparound Light Fixture with 2ft 4ft 8ft ETL DLC
