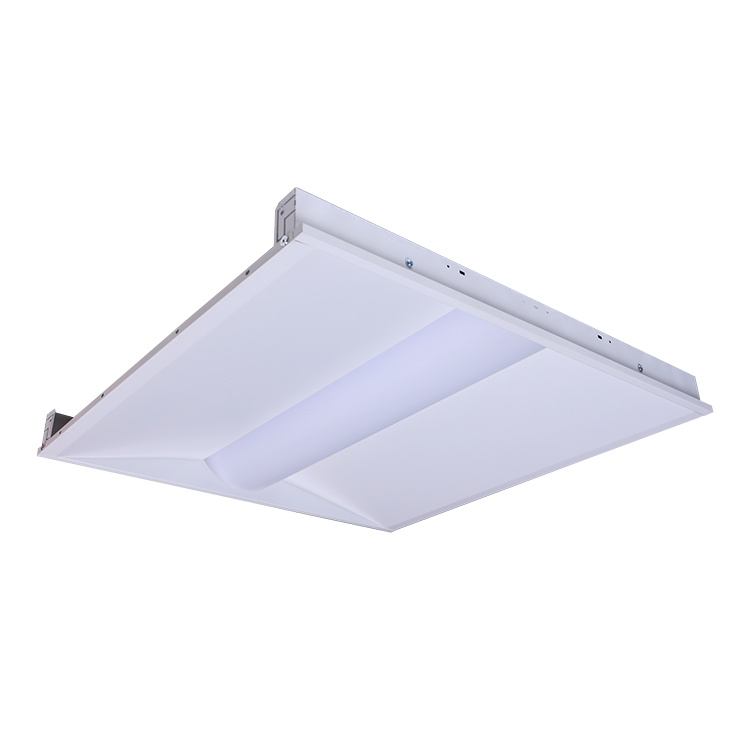

Operating Temp -25C to 45C Industrial Indoor 2x2 2x4 LED Indirect Troffer Light Fixture

Name: Operating Temp 25C to 45C Industrial Indoor 2x2 2x4 LED Indirect Troffer Light Fixture
Brand: Runlux
Price: 21.00 USD

Wholesale Operating Temp -25C to 45C Industrial Indoor 2x2 2x4 LED Indirect Troffer Light Fixture from china suppliers

Color Temperature(CCT) : 5000K (Daylight)

Lamp Luminous Efficiency(lm/w) : 125

Color Rendering Index(Ra) : 80

Support Dimmer : Yes

Color : White

Lighting solutions service : Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation

Lifespan (hours) : 50000

Working Time (hours) : 50000

Product Weight（kg） : 5

Type : Led troffer

Light Source : LED

Input Voltage(V) : 120-277V/60Hz, 120-347V/60Hz as optional

Lamp Luminous Flux(lm) : ≥125

CRI (Ra>) : 80

Working Temperature(℃) : -25℃ to 45℃

Working Lifetime(Hour) : 50000

IP Rating : IP65

Warranty(Year) : 5-Year

Place of Origin : Shanghai, China

Brand Name : Runlux

Application : Industrial Areas

Power Supply : AC

Product Name : 2x2 2x4 luminaires led indirect troffer light fixture

CRI : ≥80

CCT : 3CCT(3500K/4000K/5000K all in one fixture)

Power factor : ≥0.9

Input Voltage : 120-277AC

Mounting : Mounts into existing recessed frame

Operating Temp : -25℃ to 45℃

Humidity : 10-85% , non-condensing

Material Usage : RoHS compliant, no mercury

Environment : Indoor/Damp

MOQ : 2 pieces

Price : $21.00/pieces 2-29 pieces

Contact Now

Product Description

Operating Temp -25C to 45C Industrial Indoor 2x2 2x4 LED Indirect Troffer Light Fixture

LED Recessed Troffer Luminaires

Overview
Runlux’s LED Troffer Luminaires are LED
replacements for fluorescent troffers in new or
remodel construction. Runlux’s modern design, uniform light distribution, high lumen output per watt delivers unprecedented value.
These fixtures as ideal solutions for offices, schools, hospitals.retail, and other applications.
Features
•Voltage:120-277V/60Hz, 120-347V/60Hz as

•Lumen Efficiency:DLC premium ≥125Lm/w Luminaire
•CCT: 3500, 4000 and 5000K
3CCT: One fixture 3 color temp(3500K,4000K,5000K)
•all dimmable 0-10V, PMW
•4 wattage selectable in troffer of 2’x2’ and 2’x4’
•Ambient Temperature:-25℃~45℃
•Environment: Indoor / Dry / IP40
•Warranty: 5 years limited

Model Selection

Fits Fixture	Model No.	Power	Lumen	Working Voltage	Light Efficiency	Ra	CCT
Fits Fixture	Model No.	Power	Lumen	Working Voltage	Light Efficiency	Ra	CCT
2’ x 2’ Troffer	R3-22TL32WD4P3C	32W max	4000	120-277V	≥125	≥80	3CCT(3500K/4000K/5000K all in one fixture)
2’ x 4’ Troffer	R3-24TL49WD4P3C	49W max	6125	120-277V	≥125	≥80
2’ x 2’ Troffer	R3-22TL26WD-3CCT	26W	3250	120-277V	≥125	≥80
2’ x 4’ Troffer	R3-24TL39WD-3CCT	39W	4875	120-277V
2’ x 2’ Troffer	R3-22TL26WDHV1-3CCT	26W	3250	120-347V
2’ x 4’ Troffer	R3-22TL39WDHV1-3CCT	39W	4875	120-347V
2’ x 2’ Troffer	R3-22TL26WD-XXK	26W	3250	120-277V	≥125	≥80	3500K/4000K/5000K
2’ x 4’ Troffer	R3-24TL39WD-XXK	39W	4875	120-277V	≥125	≥80	3500K/4000K/5000K

Drawing

Specifications

Item	Specification	Model No.
		R3-22TL32 WD4P3C	R3-24TL49 WD4P3C	R3-22TL26 WD-3CCT	R3-24TL39 WD-3CCT	R3-22TL26 WDHV1-3CCT	R3-22TL39 WDHV1-3CCT

General Performance	Power Consumption (W)	32W max (32W &28W &24W&20W in one fixture)	49W max (49W &40W &36W&32W in one fixture)	26W	39W	26W	39W

	Lumens Delivered(lm)	4000 max	6125 max	3250	4875	3250	4875
	Efficacy(lm/w)	≥125
	CRI	≥80
	CCT	3CCT(3500K/4000K/5000K all in one fixture)
Electrical	Power factor	≥0.9
	Input Voltage	120-277AC				120-347V
Physical	Mounting	Mounts into existing recessed frame
	Operating Temp	-25℃ to 45℃
	Humidity	10-85% RH, non-condensing
Certification	Certification	ETL, cETL, LM79, DLC Premium
	Material Usage	RoHS compliant, no mercury
	Environment	Indoor/Damp
	Warranty	5 Years Limited Warranty

Motion Sensor


Built-in motion sensor, 120-277V Only 4m Height Max	Built-in motion sensor, Daylight Harvest Microwave Sensors, 120-277V Only 5m Height Max

Shipping information

Rated Power	Qty/Carton	Carton Size	G.W.(KGS)	20’	40GP	40HQ

2’ x 2’ Troffer	1pc	L25.59’’W24.61’H2.36’’	4.1	1071	2178	2548
2’ x 4’ Troffer	1pc	L49.80’’W24.61’H2.36’’	6.8	550	1119	1309
